Description

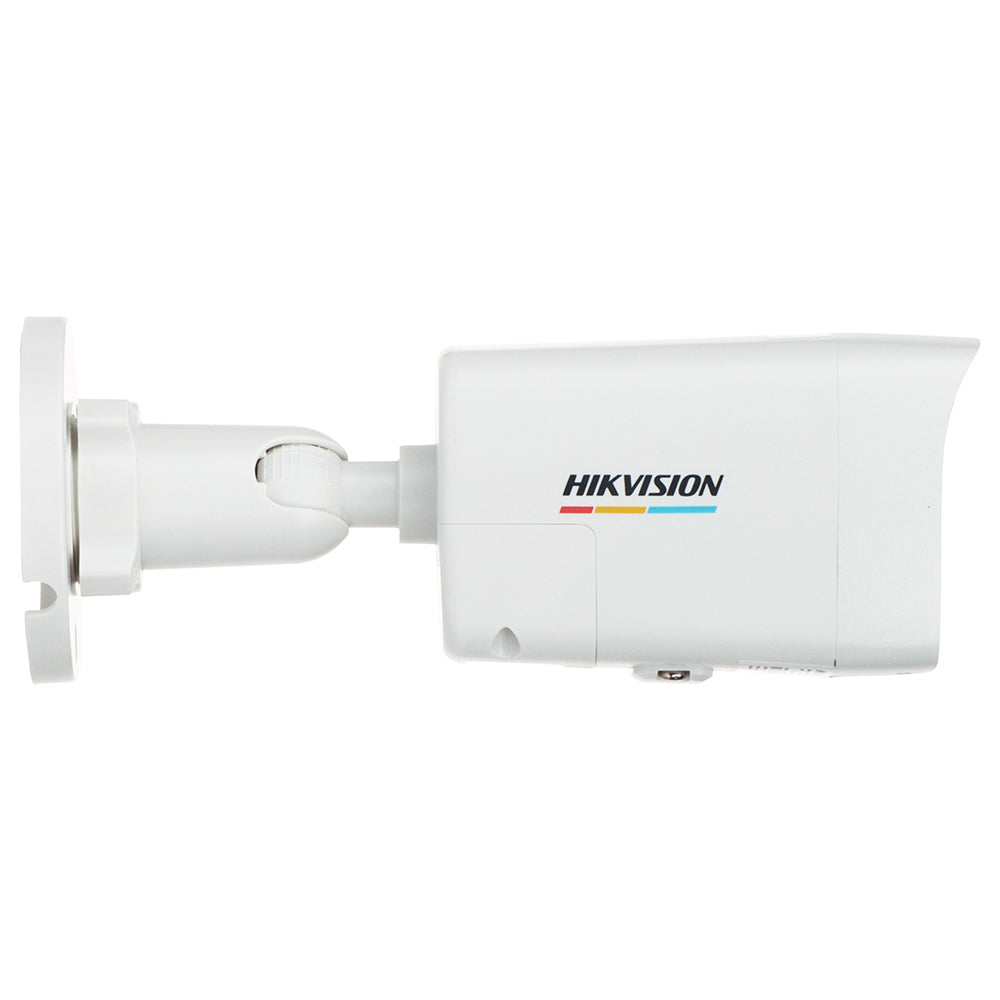

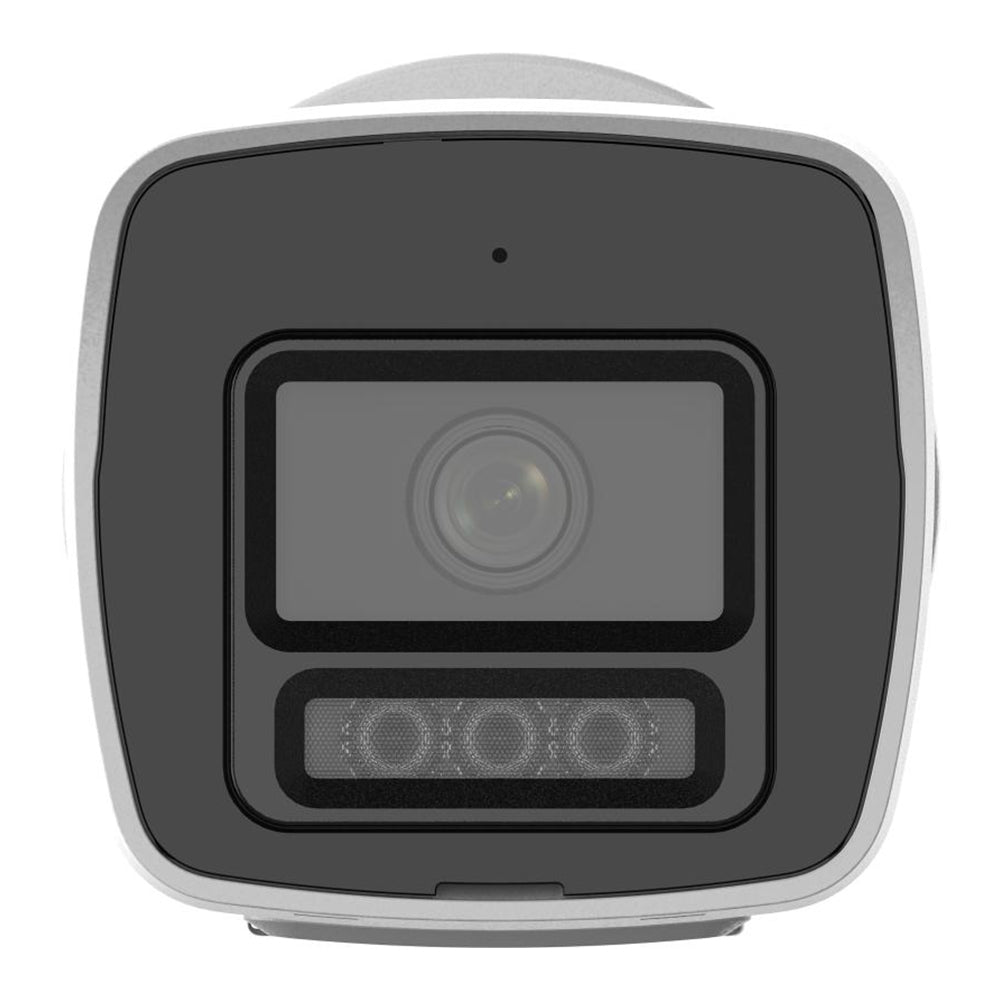

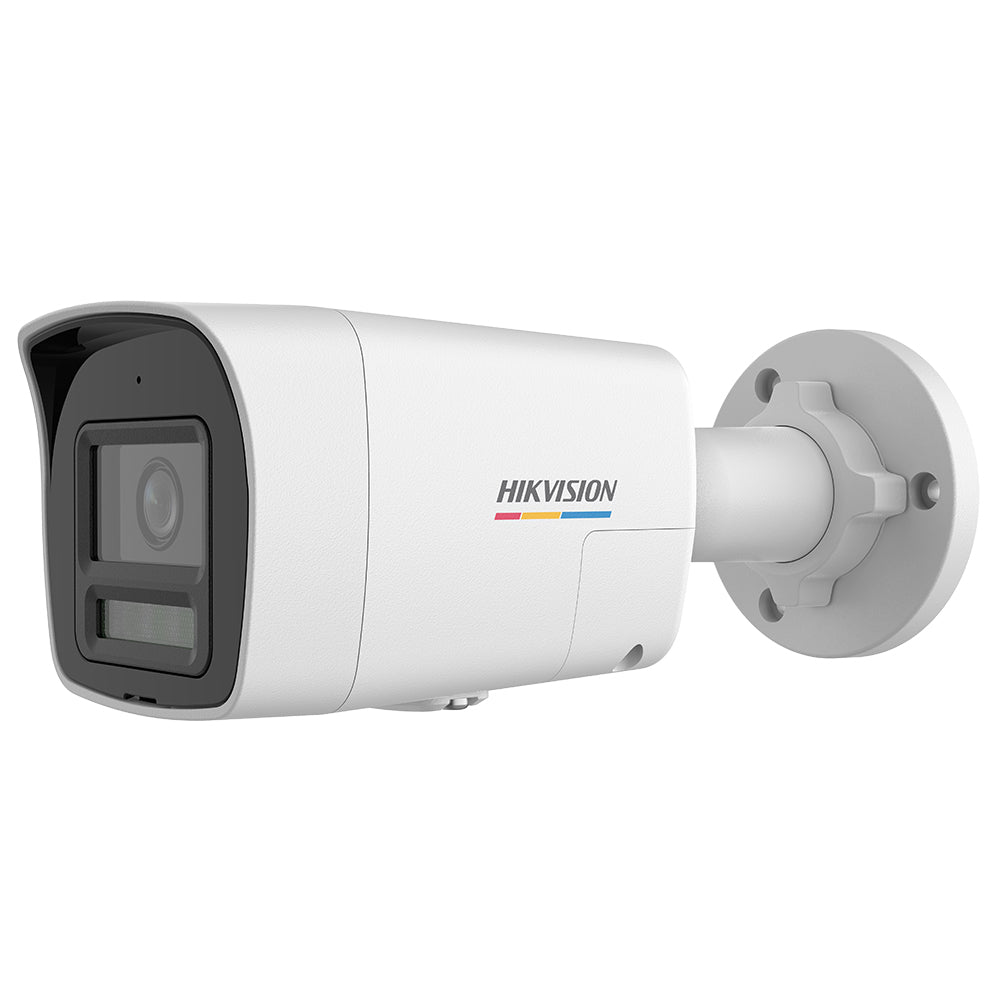

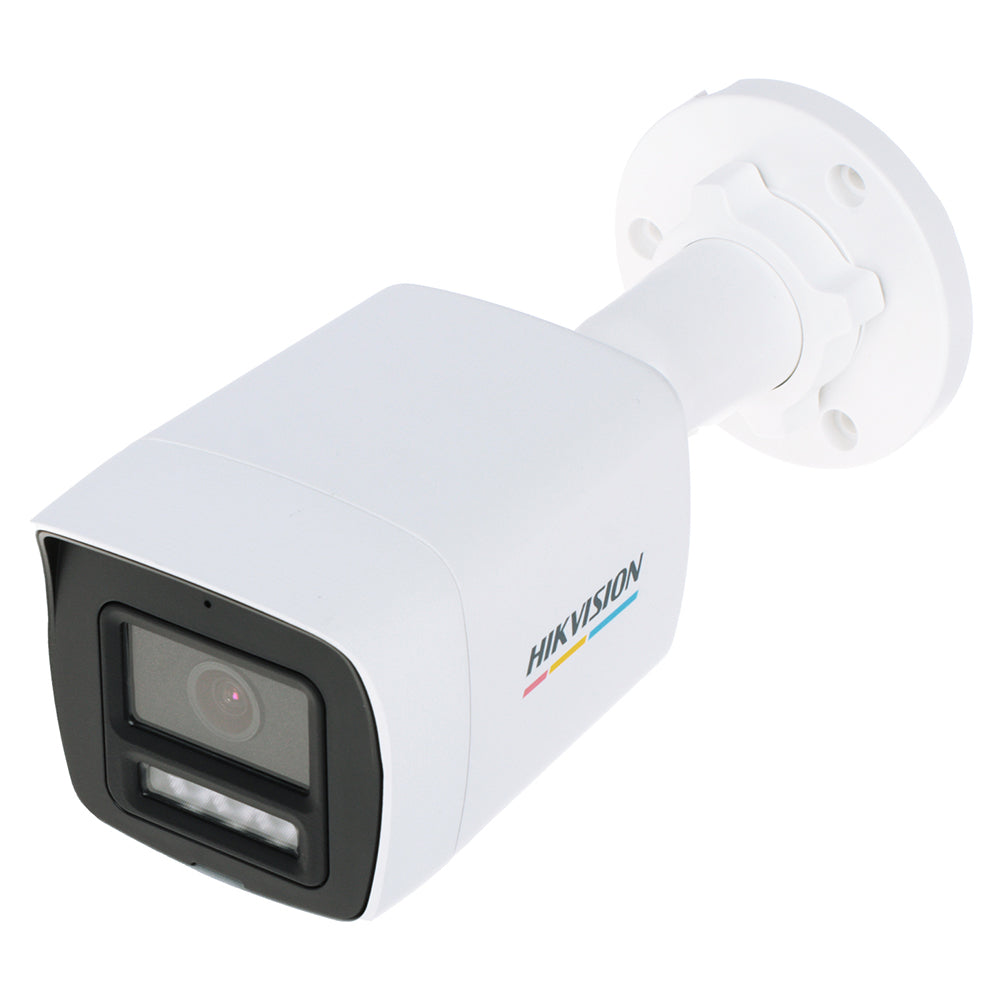

- Brand: Hikvision
- Model: DS-2CD1067G2H-LIUF/SL
- Type: Surveillance Camera
-
Camera
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Resolution: Max. 6MP 3200 × 1800
- Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux With Light
- Shutter Time: 1/3 s to 1/100,000 s
- Day/Night: IR Cut filter
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°
- Lens: 4mm, Fixed Focal Lens
- Field of View: Horizontal FOV: 94°, Vertical FOV: 50°, Diagonal FOV: 112°
- Lens Mount: M12
- Light Type: IR, White Light
- Light Range: IR: Up to 30m
- IR Wavelength: 850 nm
- Day/Night Mode: Day, Night, Auto, Schedule
-
Support WDR: Yes, 120dB
- Image Enhancement: BLC, HLC, 3D DNR
-
Video & Audio
-
Main Stream: 50Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) -
Sub-Stream: 50Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG
-
Video Bit Rate: 32 Kbps to 16 Mbps
- Environment Noise Filtering: Yes
-
Main Stream: 50Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz:
-
Interface
- Built-in Mic: Yes
- Built-in Speaker: Yes, 1.5W, 98dB Sound Pressure Level
- On-Board Storage: Support microSD/microSDHC/microSDXC Card, Up To 512GB
- Alarm: Yes, Motion Detection
- Ethernet Interface: 1x RJ45 10 M/100 M Self-Adaptive Ethernet Port
-
Network
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS,
FTP, SMTP, UPnP -
Simultaneous Live View: Up to 6 Channels
-
API: Yes
- User/Host: Up To 32 Users
- User Levels: 3, Administrator, Operator, and User
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS,
-
General
- Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or Less (Non-condensing)
- Protection Level: IP67
- Power Supply: 12 VDC ± 25%, 0.68A
- Power Consumption: Max. 8.2 W, PoE: IEEE 802.3af, Class 3, max. 9.9W
- Material: Metal, Plastic
- Dimensions: 179 × 69.1 × 67.4 mm
- Weight: 320g
