Description
Key Technical Specifications

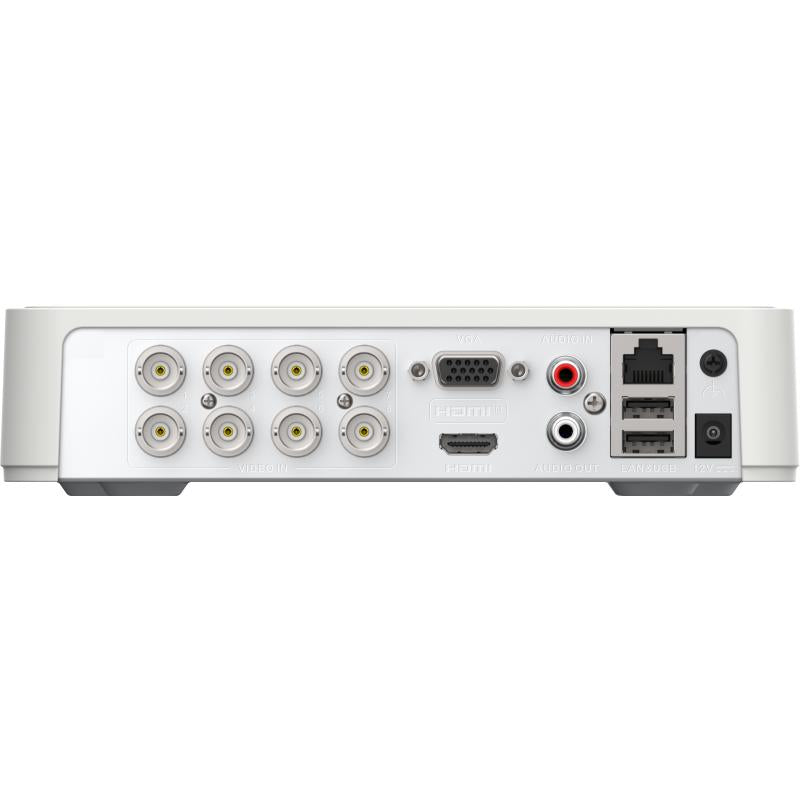

- Video Input & Hybrid Flexibility: Features 8 analog BNC channels supporting five signal types: HDTVI, AHD, CVI, CVBS, and IP. It can support up to 10 IP video input channels (with each IP channel handling up to 5 MP resolution).
- Video Recording & Compression: Records up to 1080p Lite / 720p Lite resolution at 15 fps. It features highly efficient H.265 Pro+ / H.265 Pro / H.265 compression technologies, significantly reducing bandwidth and storage usage compared to older codecs.
- Smart Detection (Motion Detection 2.0): Uses deep learning-based technology enabled by default across all analog channels to classify human and vehicle targets, vastly minimizing false alarms from rain, leaves, or shadows.
- Audio capabilities: Supports Audio Over Coaxial (AoC) on all 8 channels, meaning a single coaxial cable handles both video and audio data from compatible cameras. It also supports two-way audio.
- Storage Interface: Built with 1 SATA interface that supports a single internal Hard Disk Drive (HDD) with a capacity of up to 4 TB.
- Video Output: Offers 1 HDMI output and 1 VGA output, both displaying independent or simultaneous video feeds up to 1920 × 1080 resolution.
- Remote Access: Connects over a standard RJ45 10/100 Mbps network port. It allows users to view live streams and configurations remotely via the official Hikvision Global mobile application, Hik-Connect. [

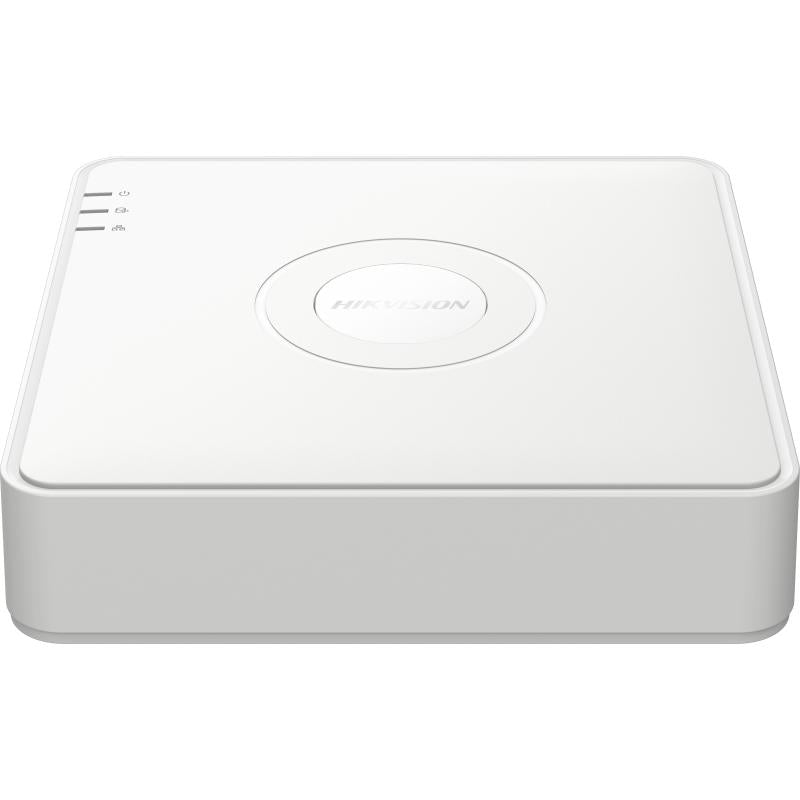

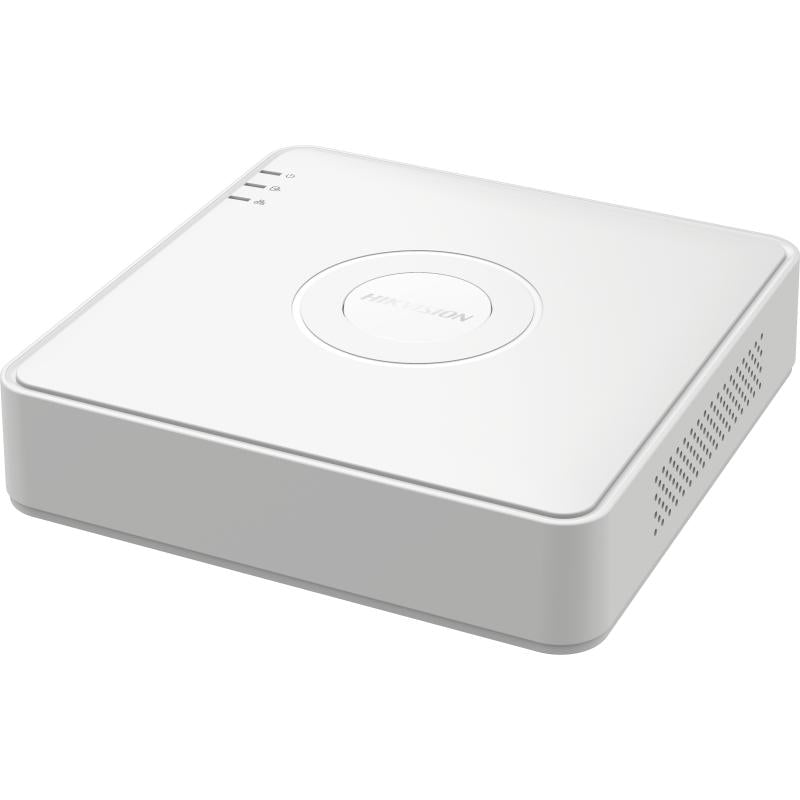

- Physical Profile: Encased in a white plastic Mini 1U chassis measuring 200 × 200 × 48 mm and weighing under 1 kg (without the hard drive installed). It consumes low power at ≤ 10 W.
